EFS 4x4 | Lift Kit - Toyota Land Cruiser 75 Series - FZJ75 | HZJ75 Cab Chassis & Troopy - 50 mm

Please note: Some products are sourced to order and may have varying lead times depending on supplier availability.

EFS Shocks
EFS provide a range of affordable, quality shock absorbers to suit all types of 4WD, whether you are an on-road only user, off the beaten track tourer or serious offroader. EFS Shock Absorbers are vehicle and height specific. "Not a one shock suits all approach".

General Specifications

Long Travel Design - Maximises wheel articulation
Twin Tube Construction - Increased control of the spring during rebound and compression cycles
Quality Hardened Chromed Piston Rods Longer service life, and greater lateral strength
5mm Outer & Inner Wall Thickness Greater durability and strength
Dynamic Motion Control Valve - Adjusts to different road & off road conditions
Polyurethane and rubber bushes – HI quality elastomer and rubber mounting bushes to suit specific applications
EFS Coil Springs
EFS Coil Springs are manufactured under a strict quality control system with the use of quality Spring steel. This ensures you are purchasing a high-quality product that is backed by a three year/100,000km warranty.

EFS Coil Springs are produced in a variety of raised heights, from standard to 125mm and also a variety of spring rates to suit different applications - Towing, load bearing accessories, increased ride height and off-road competition.

Specifications

Shot Peened - To stress relieve the outer surface of the Coil, so the Coil can operate under higher fatigue & repeated load conditions to ensure longevity.
Scragged for Quality Control -This is a process where the Coil is compressed beyond its yield point; this compression will set-up residual stresses and increase the elastic limit of the spring.
Powder Coated - To resist corrosion & to protect the spring steel from minor damage.
EFS Leaf Springs
Transform your rigid leaf sprung vehicle into a comfortable off-road performer with EFS leaf springs. Designed as a comfort leaf spring that incorporates special features that give the driver a comfortable ride on road and increased control off road, along with increased articulation and clearance.

Manufactured from high-quality grade alloyed carbon spring steel
Tapered Leaf Ends to reduce the inter-leaf friction and to improve pressure distribution in the load bearing area
Bolt Clip Liners to reduce noise and friction
Inter-Leaf Graphite Coating and Leaf Insert Pads to further reduce friction
Shot Peened & Scragged Tested to reduce stress and promote longevity
Bolt Clips & Military Wraps to prevent leaf spread and provide safety
Warranty - 3 year / 100,000 Km Warranty
Available in 30mm to 80mm raised heights with a slight increase in spring rates over the original equipment.
EFS Torsion Bars
The EFS Torsion Bar is increased in strength by 25% to 30% over the standard O.E Bar. EFS Torsion Bars will provide you with increased handling and response from your vehicle and compensate for extra loads.

Specifications

Pre-stressed for longevity and durability
Increased spring rate to compensate for load bearing accessories
Made from High Carbon Alloy Steel (XK-5160)
Bars feature machined splines, bar peeled and rolled to ensure strength & reliability.

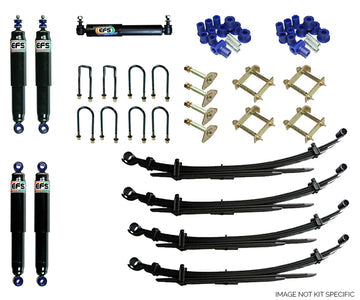

EFS suspension kit with 50mm lift for the Toyota Land Cruiser 75 Series - FZJ75 | HZJ75 Cab Chassis & Troopy models.

Suspension lift kits are designed to maintain factory rake. Feel free to contact us to discuss options for your vehicle.

Fitment Note

Rear Suspension

• Rear Springs - As a general rule, spring loading will ideally be within 150kg of constant rating for acceptable ride quality. E.g. for a 300kg constant spring, you would want 150kg of load.

Please check you are ordering the correct load rating for your vehicle, please ring to confirm if you are unsure.
