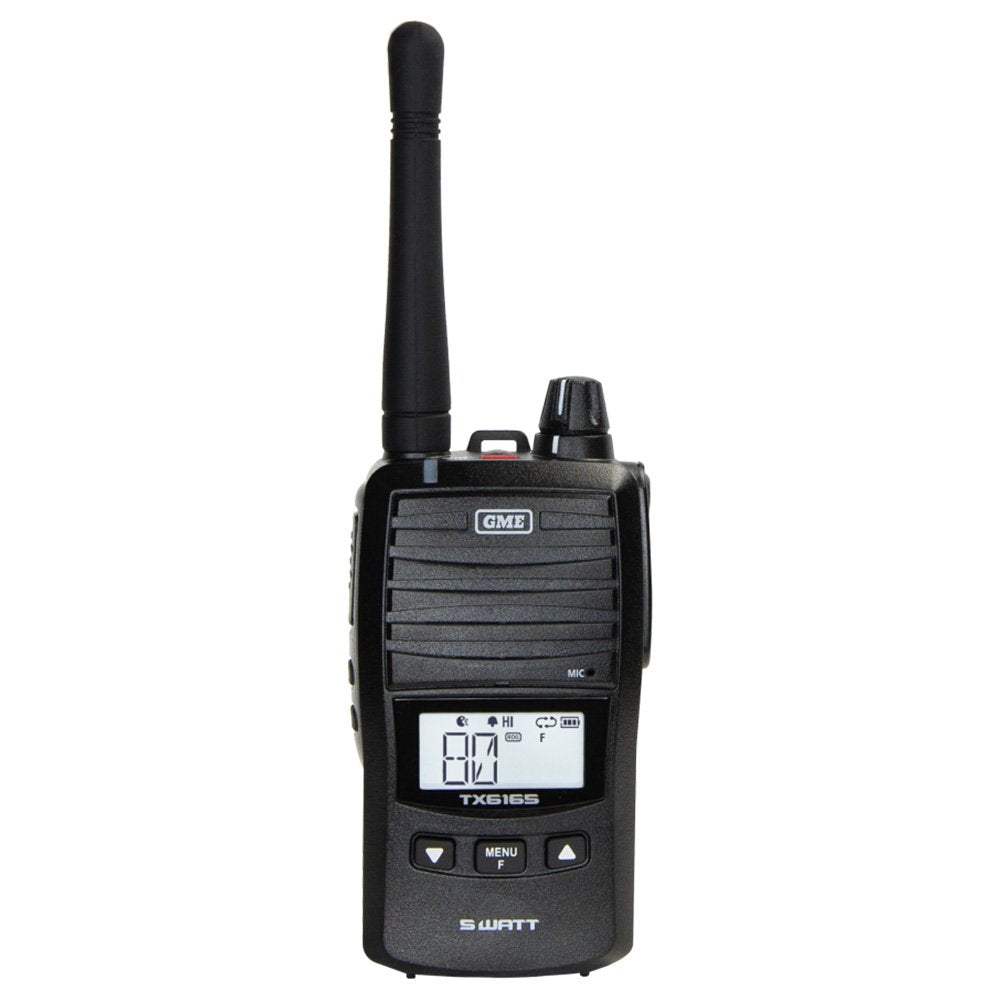

GME | 5/1 Watt IP67 UHF CB Handheld Radio

Please note: Some products are sourced to order and may have varying lead times depending on supplier availability.

Stay connected in even the most rugged environments. The GME TX6165X Waterproof Handheld UHF CB Radio offers a switchable transmission power of 5/1 watts, ensuring clear communication when you need it most. The large, high-contrast LCD display provides easy visibility, while the 2 Watt speaker delivers crisp sound quality.

Equipped with user-programmable button, VOX hands-free mode and a built-in LED torch, the TX6165X is designed for convenience and functionality. Its rugged IP67 rating means it can withstand dust, dirt and water, making it ideal for outdoor adventures or demanding work environments. With up to 30 hours of battery life, you can rely on this radio to keep you connected throughout the day.

Whether you're out in the field or exploring the great outdoors, the GME TX6165X Waterproof Handheld UHF CB Radio is a reliable companion for all your communication needs. Built tough and packed with features, this radio is a must-have for anyone who values dependable and clear communication.

GME TX6165X Waterproof Handheld UHF CB Radio Specifications:
General:

• Compliance: AS/NZS 4365 for radio communications equipment in the UHF citizen band and personal radio service
• Frequency range TX: 476.425 MHz – 477.4125 MHz
• Number of channels: 80 CB
• Channel spacing: 12.5 kHz
• Scanning speed: 20 channels per second (50 ms per channel)
• Antenna: 50Ω, SMA Female
• Supply voltage: 7.4V DC
• Battery type: Li-Ion
• Battery capacity: 2600mAh
• Operating time: 18H (5W) | 30H (1W)

Transmitter:

• RF output: High: 5W | Low: 1W
• Frequency stability: ± 2.5 PPM
• Modulation: FM
• Spurious emission: < -40 dBm
• Maximum deviation: ± 2.5 kHz
• Modulation distortion: < 5% @ 1kHz / 1.5kHz Deviation

Receiver:

• Sensitivity: -121 dBm for 12 dB SINAD
• Adjacent channel selectivity: > 60dB
• Audio output power: 2W (8Ω)
• Audio signal to noise: 34dB (SINAD)

Mechanical and environmental:

• Dimensions (W x D x H): 59 x 35 x 102 mm (not including antenna)
• Weight: 286g (with battery and antenna)
• Operating temperature: -10° C to +60° C
• Ingress protection: IP67 (dust tight and waterproof)
• Accessory connector: GME 3.5 mm / 2.5 mm stereo jack
