KRAE 4x4 | Front Diff Lock Air Actuator Conversion Kit Toyota Landcruiser 70/80/79/100 Series

Please note: Some products are sourced to order and may have varying lead times depending on supplier availability.

Diff Lock Air Actuators allow you to replace the forever problematic electric actuator’s commonly found on the 70/80/79/100 Series Land-cruisers, Prado’s and in some cases on the Hilux with a simple air activated system. The factory electric motors are prone to water ingress which will cause rust/corrosion and either stop you from engaging or disengaging the diff lock.

They are direct fit and all parts are supplied to install the actuators to the diff head. You can wire the system to use standard carling switches (ARB etc) or wire them to the factory Toyota rotary switch – all your factory dash lights will work as normal.

As these are engaged with air, you are required to have an onboard air supply.

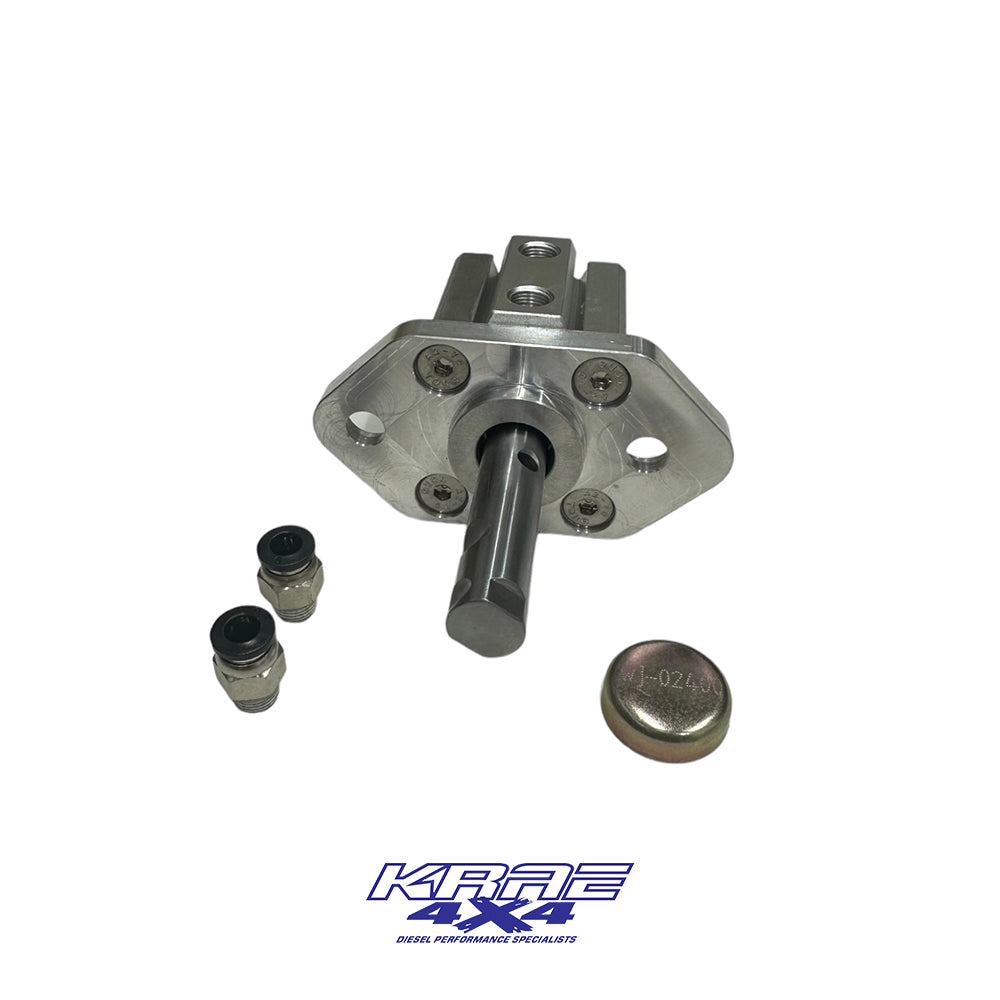

Kit Includes

• Front air diff-lock actuator
• 2x 6MM Pushlock Fittings

To Suit:

• Toyota Landcruiser 70 Series
• Toyota Landcruiser 80 Series
• Toyota Landcruiser 76/78/79 Series
• Toyota Landcruiser 100 Series

Notes

• You will have to wire the solenoid, external switch or Toyota switch, compressor, etc. we don’t supply wiring for this as each vehicle will have different requirements.
