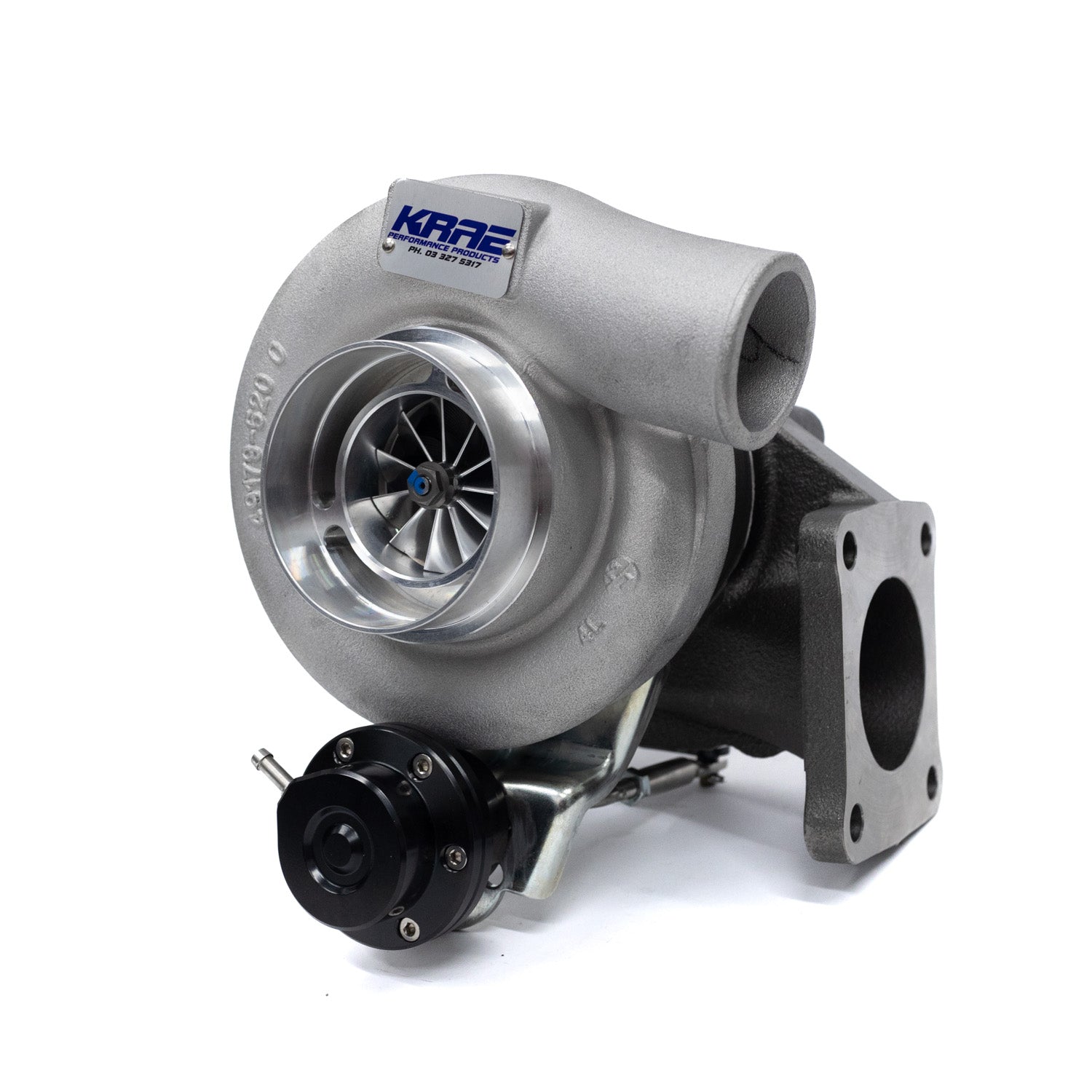

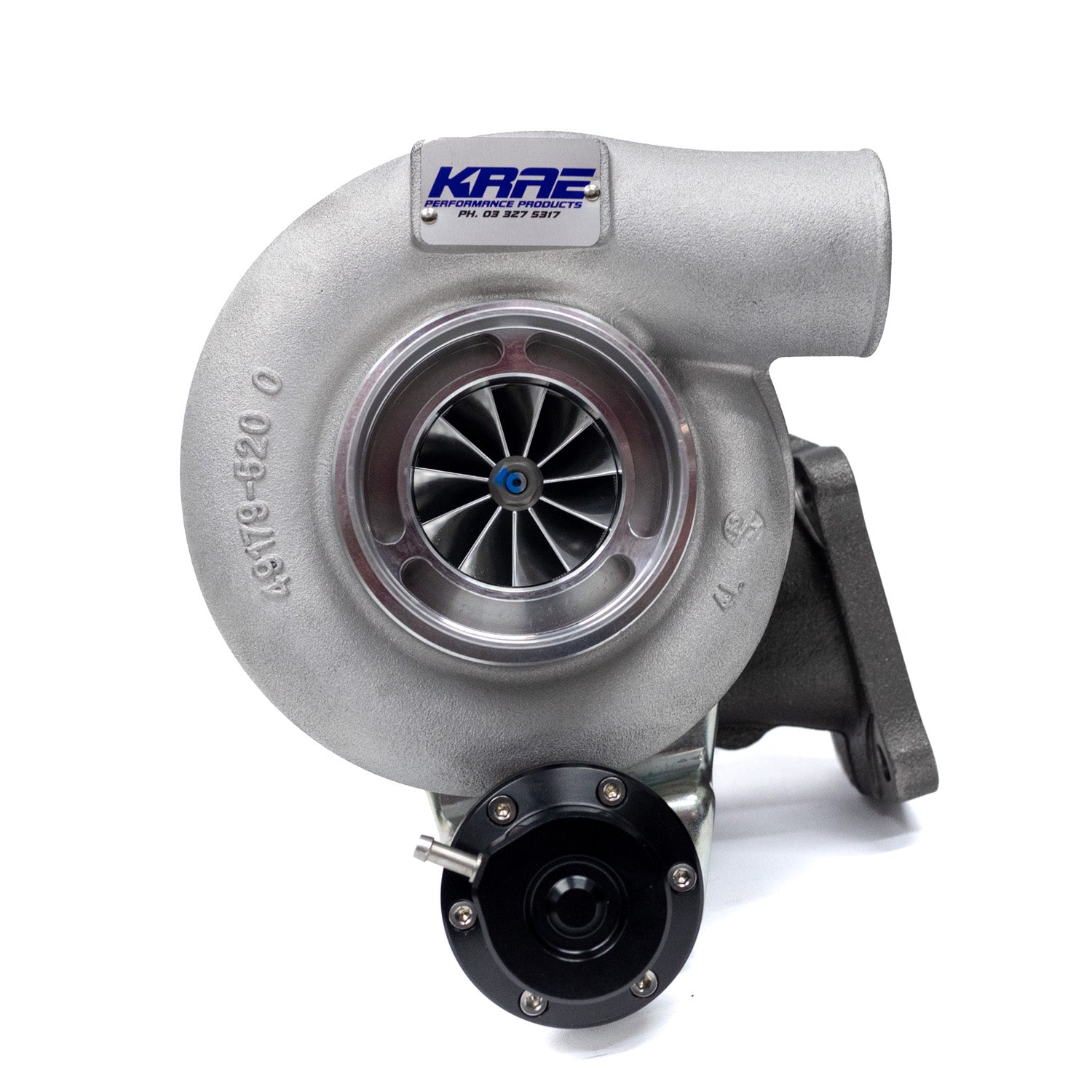

KRAE TDOX-HD Turbo to fit Toyota 1HD-T, 1HD-FT, 1HD-FTE.

After years of testing and developing this is our “go to” turbo charger for the Toyota 1HD series engines, depending on application details below.

Most recommended applications.

• 1HD MANUAL TRANSMISSION
• 1HD-FT 4 SPEED ELECTRIC AUTO TRANSMISSION (80 SERIES)
• 1HD-FTE 4 SPEED ELECTRIC AUTO TRANSMISSON (100 SERIES)
• DESIGNED BOOST PSI RANGE 20-32 PSI MAX
• PEAK BOOST BY 1900-2000RPM
• VERY EFFICENT FROM 1900-3600 RPM
• EXPECTED OUT PUT 160-320HP REAR WHEEL

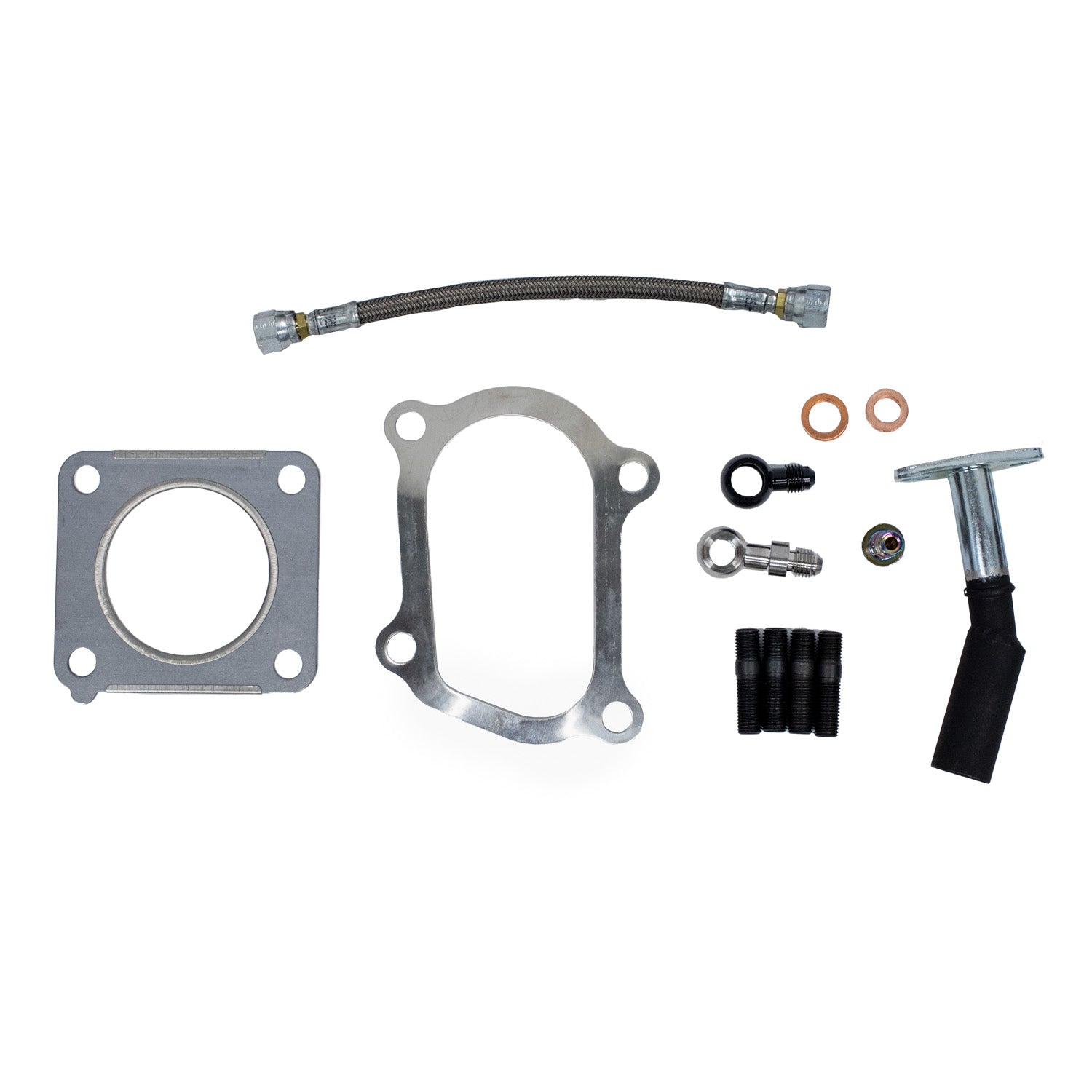

The TDOX-HD is basically 99% a bolt on turbo charger with minimal changes required. it will bolt directly to all OE 1HD exhaust manifolds, in the factory location. All after market exhausts systems designed for the CT26 exhaust flange will directly bolt up. The turbo is supplied with:

• Oil line kit
• Oil drain pipe
• Gaskets
• Studs

This turbo can and has supported dyno proven results below:

• 1HD-FTE – 320hp  (at the wheels)
• 1HD-FT – 300hp (at the wheels)
• 1HD-T – 260hp (at the wheels)

NOTE: The TDOX-HD can max out some factory air boxes on as little as 17psi. (we have options available for upgraded air boxes)

Things to check:

1. Wastegate actuator clearance to block.
2. Inducer entry size is larger so may require silicon hose adaptor.
3. Compressor discharge pipe alignment

For best results we recommend installing an intercooler, and good condition injectors. We also advise the injectors to be tested/serviced – and/or up to spec before installing any turbo upgrade or tuning.

1 year warranty

Brand new complete turbo

Note: The actual product may vary from the images shown on the website
